Amarok 166 BT

Amarok 166 BT 2025

  • 5.0 m (16’-6”)
  • 503 kg (1109 lb)
  • 60 HP (45 kW)
  • 4 persons
Amarok 166 BT 2025 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

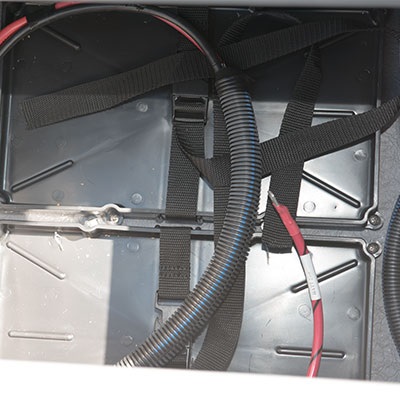

  • Trolling motor battery storage with optional bow trolling motor plug
    Trolling motor battery storage with optional bow trolling motor plug
  • Optional bow trolling motor plug
    Optional bow trolling motor plug
  • 2 fishing seats
    2 fishing seats
  • Anchor storage compartment
    Anchor storage compartment
  • Battery storage compartment
    Battery storage compartment
  • Bow raised fishing platform
    Bow raised fishing platform
  • Bow electric-filled aerated livewell (61 L / 16 U.S. gal.)
    Bow electric-filled aerated livewell (61 L / 16 U.S. gal.)
  • Storage under bow raised fishing platform
    Storage under bow raised fishing platform
  • Portable gas tank
    Portable gas tank
  • Rod storage without support in side panels
    Rod storage without support in side panels

Edition and color choices

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint, with black glossy finish including decal package
  • Reverse chine hull design
  • Aluminum clad transom
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Stainless steel bow and stern eyes
  • 4 nylon cleats
  • BOW RAISED CASTING PLATFORM
  • Storage under casting platform
  • Deep cycle battery storage compartment
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Large storage compartment
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment

  • Rod holders on each side
  • In-floor lockable rod organizer for 5 rods
  • 12V or 24V bow trolling motor plug and wiring harness
  • Bow mounting trolling motor pad
  • BOW SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • Bow livewell (34", 61 L/16 U.S. gal.)
  • Overflow
  • Anti-spill cover
  • Protection filter on the filling pump

  • 5 floor seat bases
  • 2 folding seats with no-pinch hinges

  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • PrinceTrak System: extrusion allowing onboard tool fixing
  • Carling switch panel with indicator lights
  • Electric bilge pump
  • Navigation lights
  • Factory-installed snap fasteners for canvas enclosure and trailer cover options
  • 5 cup holders
  • 1 battery holder
  • Emergency reboarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl

  • Standard galvanized bunk style trailer
  • Single axle with swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 1 084 kg (2 390 lb) carrying capacity
  • Radial tire size : ST175/80R13 C
  • Weight: 150 kg (330 lb)

  • Center line : 5.0 m (16’-6”)
  • Beam : 2.2 m (88”)
  • Chine width : 1.8 m (71”)
  • Maximum depth : 0.8 m (33”)
  • Approximate draft : 0.7 m (28”)
  • Transom height : 0.5 m (20”)
  • Approximate weight : 433 kg (954 lb)
  • Dead rise (degres) : 13

  • Maximum HP Capacity : 60 HP (45 kW)
  • Maximum weight capacity : 503 kg (1109 lb)
  • Maximum weight person capacity : 300 kg (661 lb)
  • Maximum person capacity : 4

  • Max. HP cap. : 60 HP (45 kW)
  • Max. weight cap. : 503 kg (1109 lb)
  • Maximum weight person capacity : 295 kg (650 lb)
  • Maximum person capacity : 5

  • Bottom : 2.2 mm (.087")
  • Side : 1.8 mm (.072")

  • Type : Portable - 22 L (6 gal. U.S.)

  • Princecraft® superior decal package…UE

  • Bow trolling motor plug with cable and battery tray
  • MotorGuide® Xi3-55FW wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 54", 70 lb. peak thrust)
  • Minn Kota® 55 POWERDRIVE FP trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
  • Minn Kota® 55 PD MR-54" trolling motor (12 volts, 54", 55 lb. peak thrust)
  • Minn Kota® 70 PD MR-54" trolling motor (24 volts, 54", 70 lb. peak thrust)
  • Trolling motor onboard charger for 1 - 12V battery (ProSport 6)
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)

  • Telescopic stern boarding ladder…UE
  • Seat Package: folding seat, post (11") and seat mount with auto-lock handle
  • Deluxe folding seats…UE (replacing standard seats)
  • Deluxe Seat Package: folding seat, post (11") and seat mount with auto-lock handle
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle

  • Downrigger supports (black)
  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)
  • PrinceTrak support

  • Sonar Humminbird® PiranhaMAX 4
  • Sonar Humminbird® Helix 5 chirp GPS G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird® Helix 7 G4 with RAM mount (the bathymetric depth maps are not included)
  • Sonar Lowrance® Eagle® 4X
  • Sonar Lowrance® Eagle® 7 Splitshot (the bathymetric depth maps are not included)
  • Sonar / GPS Lowrance® Elite FS 7 (the bathymetric depth maps are not included)
  • Totalscan sounder for Simrad® including down imaging and side imaging

  • Trailer cover (black)
  • Bimini top - 76” wide (black)

  • Livewell minnow bucket
  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Transom tie down straps…/pair
  • Transom saver motor support bar
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
  • ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
