Ventura 230 WRL

Ventura 230 WRL 2025

  • 7.0 m (23’-1”)
  • 1287 kg (2838 lb)
  • 250 HP (186 kW)
  • 12 persons
Ventura 230 WRL 2025 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

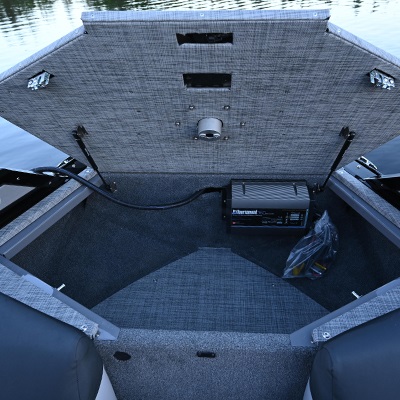

  • Large bow trolling motor battery storage
    Large bow trolling motor battery storage

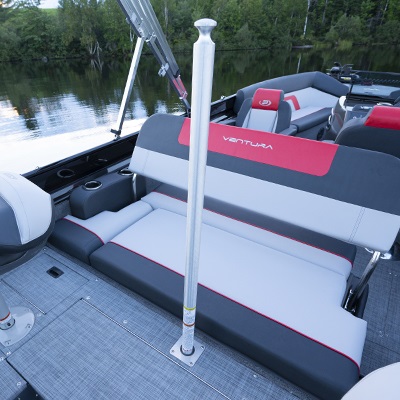

  • Optional removable ski tow bar
    Optional removable ski tow bar

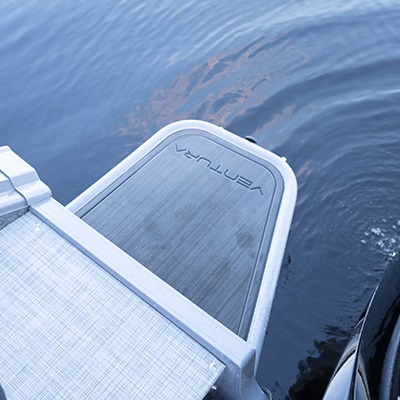

  • Optional driver side swim platform
    Optional driver side swim platform

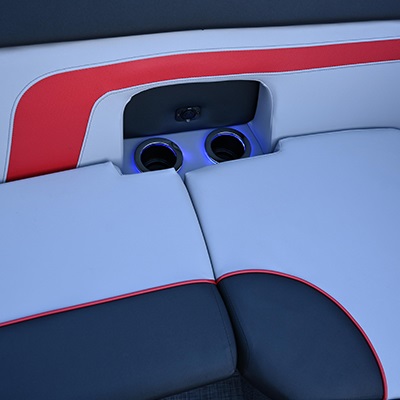

  • Cup holders with USB port
    Cup holders with USB port

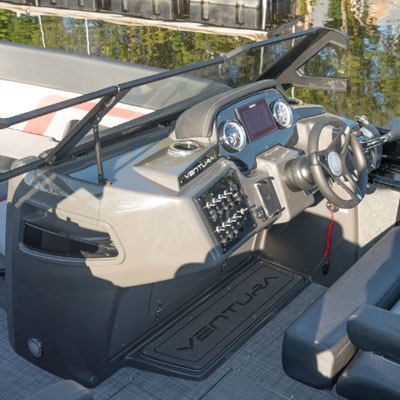

  • Driver helm shown with optional Simrad® NSX7 multifunctions screen
    Driver helm shown with optional Simrad® NSX7 multifunctions screen

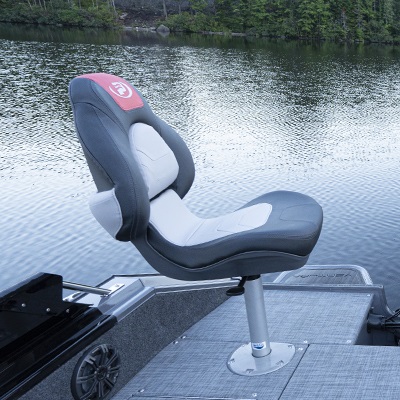

  • Folding seats
    Folding seats

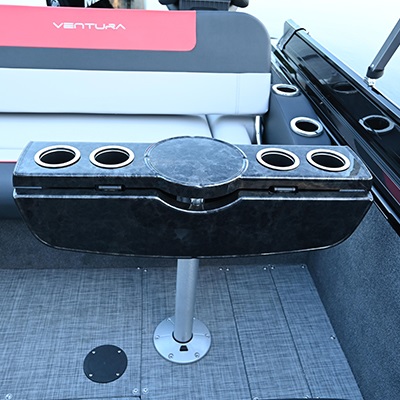

  • Black folding pedestal mount snack table with cup holders
    Black folding pedestal mount snack table with cup holders

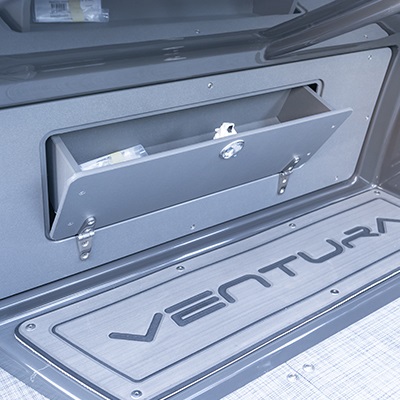

  • Under helm glove box
    Under helm glove box

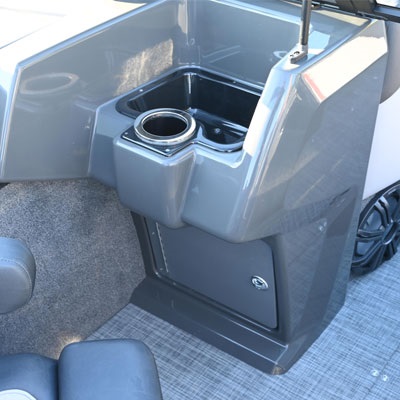

  • Passenger console with open storage and cup-holder
    Passenger console with open storage and cup-holder

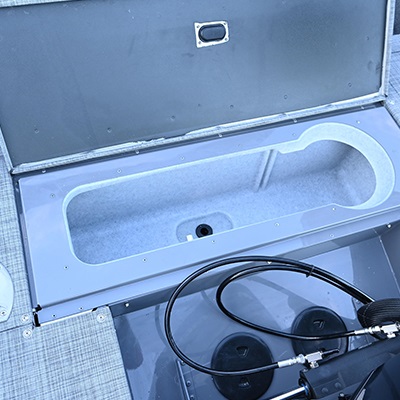

  • Electric-filled aerated stern livewell
    Electric-filled aerated stern livewell

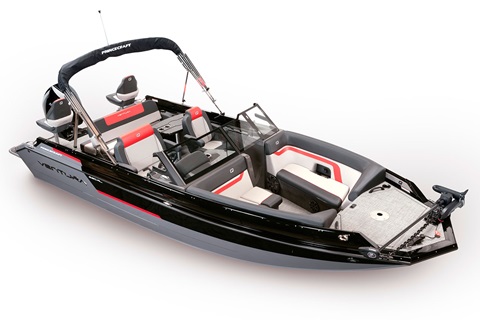

Edition and color choices

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Pressure treated wood deck
  • High gloss exterior high solid urethane paint and decal package
  • High performance deep-Vee reverse chine hull design
  • Stainless steel bow eye
  • 6 stainless steel cleats (6")
  • Side panel rigging tubes (from stern to helm and helm to bow)
  • Rear boarding access
  • Built-in floor cooler
  • In-floor lockable ski storage compartment
  • Oversize bow storage

  • Wide fiberglass helm with glove box, gauges, radio, wireless cell phone charger, and cup-holders
  • Black thermoformed dash panel with lighted switches
  • No-FeedBack steering system with dual cables
  • Electric horn
  • 200-watt AM/FM/Bluetooth Kicker Stereo with integrated USB plug and auxiliary input (1/8") at the helm
  • Black anodized walk-thru tempered glass with hidden frame windshield
  • Glove box
  • Passenger USB ports
  • 4 waterproof speakers
  • 12V outlet
  • Tempered glass windscreen

  • SeaStar hydraulic steering system with tilt wheel
  • Tachometer, voltmeter, speedometer, trim and fuel gauges

  • Roto-Cast bucket seat captain's chair with slide and swivel
  • Twin bolster captain's chair
  • Rotocast bucket seat captain's chair with slide and swivel
  • 2 folding seats
  • 3 floor seat bases

  • Plush and heavy weight upholstery
  • RL design including multi-positions seat module, tanning area, black woodgrain folding pedestal mount snack table with cup holders, and storage under all seats
  • Leisure zone with lounge seats, L-shaped furniture with storage under all seats including cup-holders and USB plugs
  • Storage under all lounges

  • 12V, 24V or 36V bow trolling motor plug with 3 battery trays
  • 44” long built-in electric-filled aerated livewell (77 L / 20 U.S. gal.)
  • 9-foot for 4 rods built into the lockable in-floor ski compartment

  • Black bimini top
  • Quick release bimini top latches and traveling struts
  • Factory-installed snap fasteners for canvas enclosures and protective covers

  • Stern boarding ladder
  • Built-in floor fuel system
  • 2 electric bilge pumps (500 gph)
  • 4 battery trays
  • Navigation lights
  • Interior lighting
  • Stainless steel propeller (standard on 175 HP engines and up)
  • Cup holders
  • Holding handles
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)

  • Center line : 7.0 m (23’-1”)
  • Beam : 2.6 m (101”)
  • Bottom width : 2.1 m (83")
  • Maximum depth : 1.0 m (40")
  • Approximate draft : 0.8 m (31")
  • Transom height : 0.64 m (25")
  • Approximate weight : 1287 kg (2838 lb)
  • Dead rise (degres) : 13

  • Max. HP cap. : 250 HP (186 kW)
  • Max. weight cap. : 1183 kg (2607 lb)
  • Maximum wieght person capacity : 768 kg (1693 lb)
  • Maximum person capacity : 10

  • Max. HP cap. : 250 HP (186 kW)
  • Max. weight cap. : 1183 kg (2607 lb)
  • Maximum weight person capacity : 768 kg (1693 lb)
  • Maximum person capacity : 12

  • Bottom : 2,8 mm (.110")
  • Side : 2,5 mm (.100")

  • Permanent : ≤ 208 L (55 U.S. gal.)

  • Entertainment Package including removable ski post and side swim platform (driver side)

  • Mercury® power steering with tilt wheel (for 175, 200 & 225 HP V6 only)…UE
  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 60", 70 lb. peak thrust)
  • MotorGuide® Xi5 wireless trolling motor (24 volts, 60", 80 lb. peak thrust)
  • Minn Kota® 70 PD V2 trolling motor (24 volts, 60", 70 lb. peak thrust) with bracket
  • Minn Kota® 70 PD V2 trolling motor (24 volts, 60", 70 lb. peak thrust) with iPilot and bracket
  • Minn Kota® Ulterra 80 trolling motor (24 volts, 60", 80 lb. peak thrust) with iPilot and bracket
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)
  • Trolling motor onboard charger for 3 - 12V batteries (ProTournament 360 elite)

  • Stern seat cushions
  • Port side swim platform (passenger side only)
  • Manual powered wakeboard tower including bimini top (black)
  • 2 pontoon rail boat fender hangers
  • Pop-up privacy enclosure
  • Head Package including holding tank with a pump out system (9.8 l/ 2.6 U.S. gal.) and a pop-up privacy enclosure
  • Deluxe Seat Package: folding seat, post (15") and seat mount with auto-lock handle

  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)
  • PrinceTrak support

  • Premium High Power stereo system…UE (including touchscreen Simrad® NSX7 with digital media center, 5 high performance speakers, VesselView link, downscan imaging, 10 inches subwoofer and amplifier)…UE
  • Sonar Humminbird® PiranhaMAX 4
  • Sonar Humminbird® Helix 5 chirp GPS G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird® Helix 7 G4 with RAM mount (the bathymetric depth maps are not included)
  • Sonar Lowrance® Eagle® 4X
  • Sonar Lowrance® Eagle® 7 Splitshot (the bathymetric depth maps are not included)
  • Sonar / GPS Lowrance® Elite FS 7 (the bathymetric depth maps are not included)
  • Totalscan sounder for Simrad® including down imaging and side imaging…UE
  • Active trim: automatic trim system
  • LED docking lights
  • Underwater lighting (2 lights)

  • Protective cover (black)
  • Protective cover available with optional wakeboard tower package (black)
  • Double bimini top excluding stern bimini canvas, including rear extension and chrome finish frame (black)
  • Double bimini top available with wakeboard package excluding stern bimini canvas, including rear extension and chrome finish frame (black)
  • Special Edition full camper enclosure excluding stern bimini canvas with chrome finish frame (black)
  • Special Edition full camper enclosure available with wakeboard package option and chrome finish frame, excluding stern bimini canvas (black)

  • Stainless steel propeller model Enertia 15,3 x 14 (for 150 HP PRO-XS)…UE
  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Transom tie down straps…/pair
  • Transom saver motor support bar
  • ST175/80R13 C painted spare wheel with 5 lugs and bracket
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
  • 13" aluminum mag wheels…UE on painted model...(tandem, 4)
  • 13" aluminum mag wheels…UE on galvanized model...(tandem, 4)
  • 13" aluminum mag spare wheel and bracket (excluding nuts)
