Platinum 190

Platinum 190 2025

  • 5.8 m (19’-0”)
  • 898 kg (1980 lb)
  • 200 HP (149 kW)
  • 8 persons
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

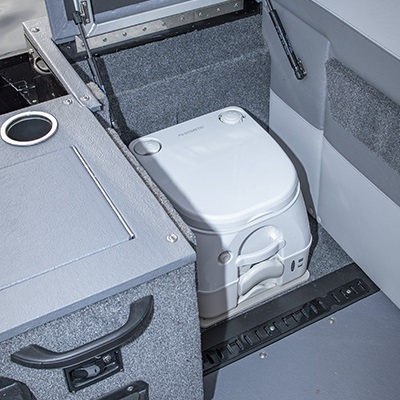

  • Optional head, including holding tank and pump out system
    Optional head, including holding tank and pump out system

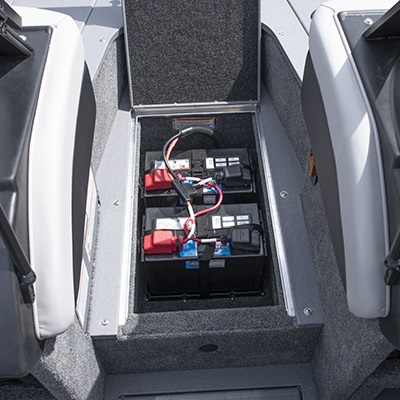

  • Battery storage
    Battery storage

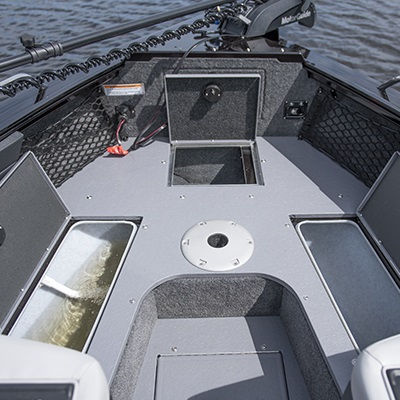

  • Ice chest, livewell, and storage compartment under the bow casting platform
    Ice chest, livewell, and storage compartment under the bow casting platform
  • Driver helm (shown with optional multifunction Simrad® NSX9 - right screen)
    Driver helm (shown with optional multifunction Simrad® NSX9 - right screen)

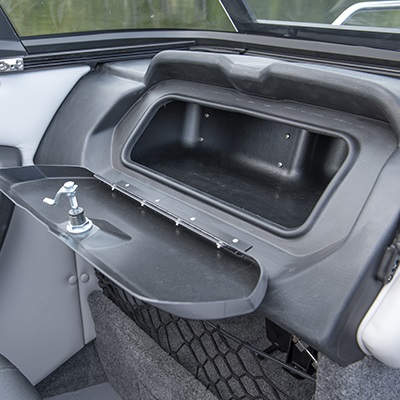

  • Passenger console with glove box and storage under with extensible cargo net
    Passenger console with glove box and storage under with extensible cargo net
  • 2 stern fold-down jump seats
    2 stern fold-down jump seats

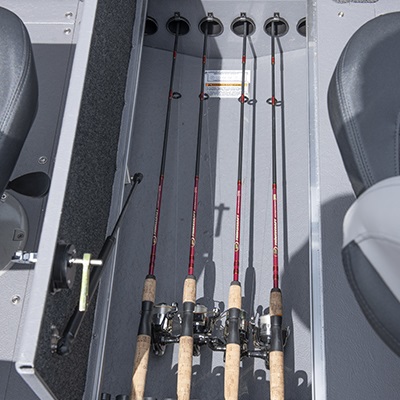

  • In-floor lockable rod organizer for 6 rods
    In-floor lockable rod organizer for 6 rods

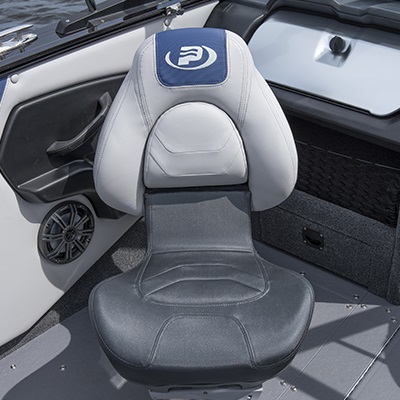

  • 2 deluxe convertible seats
    2 deluxe convertible seats

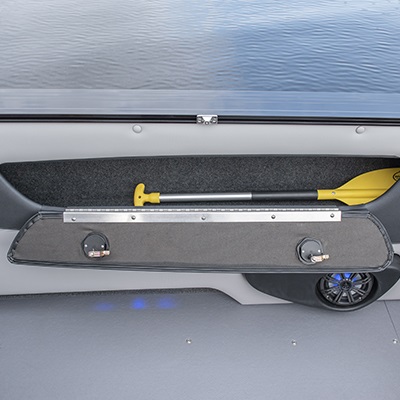

  • Lockable storage compartment in side panels
    Lockable storage compartment in side panels
  • Stern telescopic boarding ladder with boarding platform and antiskid carpet
    Stern telescopic boarding ladder with boarding platform and antiskid carpet

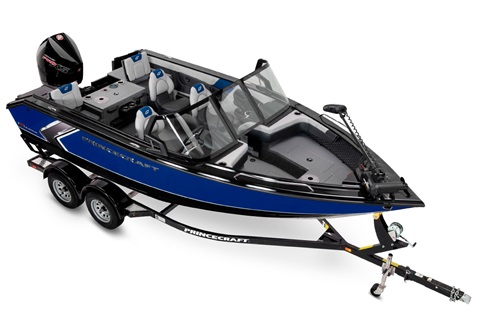

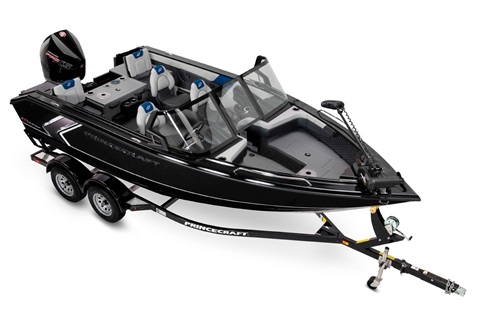

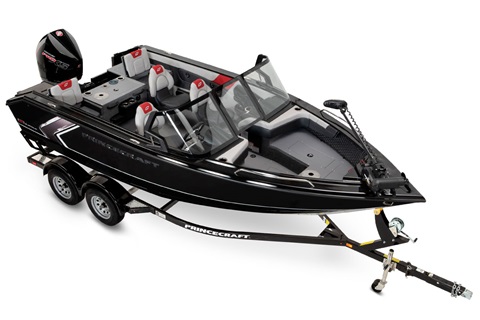

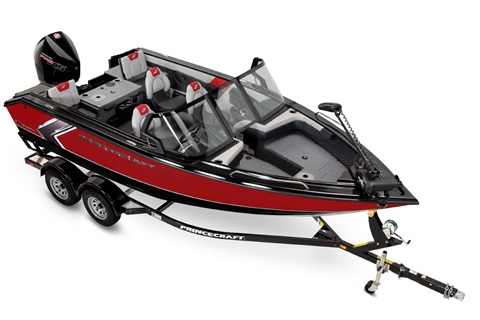

Edition and color choices

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint choices, with a metallic finish including decal package and 3D Princecraft logo
  • Double reverse chine hull design
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (from helm to bow)
  • Rigging tube under flooring (from stern to helm)
  • Stainless steel bow and stern eyes
  • 4 stainless steel recessed cleats
  • BOW RAISED CASTING PLATFORM
  • Anchor storage compartment
  • Extensible cargo nets
  • Deep cycle battery storage compartment
  • Integrated cooler
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Storage under bow deck
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • 2 fold-down jump seats
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Multifunction unit including tool support, cup holders, LED light, and 12 volts outlet
  • Storage compartment

  • 7-foot rod storage without support
  • In-floor lockable rod organizer for 6 rods
  • Lockable storage compartment in side panels
  • 12V, 24V or 36V bow trolling motor plug and wiring harness
  • Trolling motor plug with 60 AMP protection
  • Trim switch for main engine
  • Nets addition under helm and on bow platform
  • Aluminum bow deck for trolling motor
  • BOW PROFLO PLUS ELECTRIC-FILLED AERATED LIVEWELL
  • Bow livewell (30", 64 L/17 U.S. gal.)
  • Intermittent recirculation
  • Overflow
  • Remote control thru-hull drain
  • Light
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump
  • STERN PROFLO PLUS ELECTRIC-FILLED AERATED LIVEWELL
  • Stern livewell (34", 64 L/17 U.S. gal.)
  • Intermittent recirculation
  • Overflow
  • Remote control thru-hull drain
  • Light
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump

  • 6 floor seat bases
  • Deluxe heated convertible driver seat with no-pinch hinges
  • 2 deluxe convertible seats with no-pinch hinges
  • Adjustable post and sliding rail for driver seat
  • Sliding rail for passenger seat

  • Twin consoles with steering system
  • Glove box
  • Drawer under passenger console
  • Black anodized walk-thru tempered glass with hidden frame windshield
  • Deluxe dash panel with switches and indicator lights
  • SeaStar hydraulic steering system with tilt wheel
  • Storage under driver console with extensible cargo net
  • 200-watt AM/FM/Bluetooth Clarion Digital media center including an in-dash USB plug
  • 4- 6 1/2" waterproof speakers with LED lights
  • Electric horn, USB plugs and 12V outlet on passenger side

  • SIMRAD® NSX7 multifunction touch screen with instrumentation display, GPS functions, sonar, and downscan imaging
  • Simrad® Totalscan transducer

  • Pop-up privacy enclosure in stern casting platform
  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • PrinceTrak System: extrusion allowing onboard tool fixing
  • Coaming pads
  • High capacity automatic electric bilge pump
  • Stainless steel bow grab rails
  • Navigation lights
  • On-floor top storage
  • ACS system: Air intake allowing airflow of the in-floor rod organizer
  • Factory-installed snap fasteners for canvas enclosure and trailer cover options
  • LED docking lights
  • Interior light(s) and ambient LED
  • 5 handles
  • 8 cup holders with 4 LED lighted
  • 4 battery holders
  • Stern telescopic boarding ladder with boarding platform and anti-skid carpet
  • Battery switch to shut down the electric system
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl
  • Stainless steel propeller standard on 175 HP and up
  • Cockpit quick drain to bilge

  • Standard black bunk style trailer
  • Tandem axle with hydraulic brakes and swing tongue
  • Carpeted fixed bunks and load guides
  • Checker polished aluminum covered step pads
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 2 625 kg (5 787 lb) carrying capacity
  • Radial tire size : ST205/75R14 C
  • Weight: 550 kg (1 213 lb)

  • Center line : 5.8 m (19’-0”)
  • Beam : 2.5 m (98”)
  • Chine width : 2.1 m (84")
  • Maximum depth : 1.2 m (46")
  • Approximate draft : 0.8 m (33")
  • Transom height : 0.6 m (25")
  • Approximate weight : 788 kg (1737 lb)
  • Dead rise (degres) : 17

  • Maximum HP Capacity : 200 HP (149 kW)
  • Maximum weight capacity : 898 kg (1980 lb)
  • Maximum weight person capacity : 525 kg (1156 lb)
  • Maximum person capacity : 7

  • Max. HP cap. : 200 HP (149 kW)
  • Max. weight cap. : 898 kg (1980 lb)
  • Maximum weight person capacity : 507 kg (1117 lb)
  • Maximum person capacity : 8

  • Bottom : 2.8 mm (.110")
  • Side : 1.8 mm (.072")

  • Built-in : ≤ 140 L (37 U.S. gal.)

  • Textured marine mat with snaps

  • Mercury® power steering system with tilt wheel (for 175, 200 & 225 HP enginess)…UE
  • Mercury® power steering system with tilt wheel (for V8 enginess)…UE
  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 60", 70 lb. peak thrust)
  • MotorGuide® Xi5 wireless trolling motor (24 volts, 60", 80 lb. peak thrust)
  • Minn Kota® 70 Dual spectrum CHIRP trolling motor (24 volts, 60", 70 lb. peak thrust) and bracket
  • Minn Kota® Terrova trolling motor (36 volts, 60", 112 lb. peak thrust/DSC/FP/GPS)
  • Minn Kota® Ulterra 80 trolling motor (24 volts, 60", 80 lb. peak thrust) with iPilot and bracket
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)
  • Trolling motor onboard charger for 3 - 12V batteries (ProTournament 300)
  • Kicker option with SeaStar® hydraulic steering Mercury® 15 PRO-KICKER with remote control and connecting rod
  • Kicker option with SeaStar® hydraulic steering Mercury® 9.9 PRO-KICKER with remote control and connecting rod
  • Kicker option with power steering Mercury® 15 PRO-KICKER with remote control and connecting rod (for V6/V8)
  • Kicker option with power steering Mercury® 9.9 PRO-KICKER with remote control and connecting rod (for V6/V8)

  • Bow rider seat cushions (red accent)
  • Bow rider seat cushions (blue accent)
  • Removable ski pylon
  • Head with holding tank & pump out system (9.8 l/ 2.6 U.S. gal.)
  • Convertible deluxe seat package: convertible seat, post (10") and seat mount with auto-lock handle (red accent)
  • Convertible deluxe seat package: convertible seat, post (10") and seat mount with auto-lock handle (blue accent)
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle (red accent)
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle (blue accent)
  • Heated convertible seat for passenger seat (red accent)…UE
  • Heated convertible seat for passenger seat (blue accent)…UE
  • Heated reclining captain's chair with adjustable armrests for driver seat (red accent)…UE
  • Heated reclining captain's chair with adjustable armrests for driver seat (blue accent)…UE
  • 2 heated reclining captain's chairs with adjustable armrests on a fixed post and base for driver and passenger seats (red accent)…UE
  • 2 heated reclining captain's chairs with adjustable armrests on a fixed post and base for driver and passenger seats (blue accent)…UE

  • Ventilation system in bow storage compartments including an electric fan
  • Downrigger supports (Metallic black)
  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)
  • PrinceTrak support

  • Parallel arm starboard side wiper & hardware
  • Sonar Humminbird® PiranhaMAX 4
  • Sonar Humminbird® Helix 5 chirp GPS G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird® Helix 7 G4 with RAM mount (the bathymetric depth maps are not included)
  • Sonar Lowrance® Eagle® 4X
  • Sonar Lowrance® Eagle® 7 Splitshot (the bathymetric depth maps are not included)
  • Sonar / GPS Lowrance® Elite FS 7 (the bathymetric depth maps are not included)
  • Multifunction Simrad® NSX7 screen replacing the standard gauges (the bathymetric depth maps are not included)…UE
  • Active trim: automatic trim system

  • Trailer cover (black)
  • Bimini top on windshield with frame (black)
  • Converting a bimini top to full top (black)

  • Wash down system
  • Stainless steel propeller model TempestPlus 14 5/8 x 19 for 150 HP & 150 HP PRO-XS…UE

  • Transom tie down straps…/pair
  • Transom saver motor support bar
  • ST205/75R14 C painted spare wheel with 5 lugs and bracket
  • ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
  • 14" aluminum mag wheels…UE on painted model...(tandem, 4)
  • 14" aluminum mag wheels…UE on galvanized model...(tandem, 4)
  • 14" aluminum mag spare wheel and bracket (excluding nuts)
